COS-11D-HWM
ULTRA-MINIATURE
HEAD WORN
MIC
Exceptional quality, reliability, and comfort for live performance
The lightweight omnidirectional COS-11D HWM head worn mic is the industrywide standard for high quality stage microphones.
This ultra-miniature new generation microphone was designed for hi-resolution audio in feature film and television production and is now available for usage on stage, for broadcast, in houses of worship and for other live events.
This new model is ideal for major talent, stage singers, high-profile commentators, on-camera journalists, musical actors, and a wide variety of live performers. The new COS-11D HWM is especially valuable when there is rigorous head movement, while the close proximity of the mic to the vocal source provides consistently exceptional audio with very natural characteristics.
COS-11D-HWM-PT-CC shown opposite with Pigtail termination (PT) and Cocoa color (CC). Image below shows Beige (BE) mic head.
Designed to meet today’s HD audio standards while providing greater immunity to RF interference
Sanken utilizes an exclusive vertical placement of the diaphragm for a much greater effective area within an extremely small casing. The COS-11D HWM features a front mesh screen which is water resistant, better protecting the microphone from perspiration and cosmetics.
This new Sanken microphone was designed to meet today’s HD audio standards while providing greater immunity to RF interference. The COS-11D HWM incorporates exclusive design advances that deal with both digital and digital/analog hybrid RF wireless transmission. Available in a pigtail version or with various connectors for different transmitters.
- Optimized for the Human Voice
- Same mic used in feature films and television, now available as head worn
- Stable, Flexible and Adjustable Dual-Earpiece Stainless Steel Frame
- MicBoom is Interchangeable for Right or Left Sides
- Unique and Reliable Vertical Diaphragm Design – a Sanken Original
- Natural response and almost perfect omni pattern
- Available in Beige or Cocoa
- Strong immunity to RFI
- Available as bare wire pigtail or with various connectors
SPECIFICATIONS
|
Model Name |
COS-11D-HWM |
|
Transducer |
Self Polarized condenser |
|
Directivity |
Omnidirectional |
|
Frequency response |
50Hz-20kHz |
|
Sensitivity (at 1kHz) |
7.1mV Pa (-43dB, 0dB = 1V Pa) |
|
Equivalent noise level (A weighted) |
28dB |
|
Max SPL |
136dB SPL |
|
Output impedance( 1kHz ) |
700 ohms |
|
Powering |
+2.5Vdc to +12Vdc |
|
Current consumption |
0.3 mA |
|
Weight |
8g (0.28oz) without cable |
|
Dimensions |
16.1mm length x 4mm dam |
|
Surface finish |
Baked painting – Beige (BE) or Cocoa (CC) |
|
Connector |
4 Connectivity Options: |
POLAR PATTERN

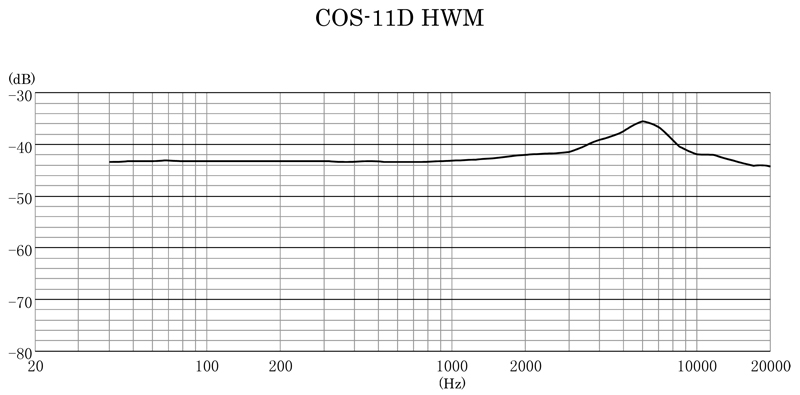

FREQUENCY RESPONSE
COS-11D-HWM
Dual Ear Frame Head Worn Lavalier Microphone in two different colors, Beige or Cocoa, and with different termination options shown in the table below…
|
COS‐11D‐HWM‐PT‐BE |
Pigtail Termination – Tinned wires (BE) Beige |
|
COS‐11D‐HWM‐PT‐CC |
Pigtail Termination – Tinned wires (CC) Cocoa |
|
COS‐11D‐HWM‐TA5(or TA4)-BE |
Terminated with TA‐5 (or TA‐4) Connector, (BE) Beige |
|
COS‐11D‐HWM‐TA5(or TA4)-CC |
Terminated with TA‐5 (or TA‐4) Connector, (CC) Cocoa |
|
COS‐11D‐HWM‐TRS‐BE |
Terminated with 2.1mm TRS Connector, (BE) Beige |
|
COS‐11D‐HWM‐TRS‐CC |
Terminated with 2.1mm TRS Connector, (CC) Cocoa |
|
COS‐11D‐HWM‐Lmo‐BE |
Terminated with Lemo Connector, (BE) Beige |
|
COS‐11D‐HWM‐Lmo‐CC |
Terminated with Lemo Connector, (CC) Cocoa |
COS‐11D‐HWM‐MIC BOOM
(Mic and Accessories Not Included)
Dual Ear Frame Head Worn Lavalier Microphone Boom Arm Only in two different colors, Beige or Cocoa, and with different termination options shown in the table below…
|
COS‐11D‐HWM‐MIC BOOM‐PT‐BE |
Pigtail Termination – Tinned wires (BE) Beige |
|
COS‐11D‐HWM‐MIC BOOM‐PT‐BE |
Pigtail Termination – Tinned wires (CC) Cocoa |
|
COS‐11D‐HWM‐MIC BOOM‐TA5(or TA4)-BE |
Terminated with TA‐5 (or TA‐4) Connector, (BE) Beige |
|
COS‐11D‐HWM‐MIC BOOM‐TA5(or TA4)-CC |
Terminated with TA‐5 (or TA‐4) Connector, (CC) Cocoa |
|
COS‐11D‐HWM‐MIC BOOM‐TRS‐BE |
Terminated with 2.1mm TRS Connector, (BE) Beige |
|
COS‐11D‐HWM‐MIC BOOM‐TRS‐CC |
Terminated with 2.1mm TRS Connector, (CC) Cocoa |
|
COS‐11D‐HWM‐MIC BOOM‐Lmo‐BE |
Terminated with Lemo Connector, (BE) Beige |
|
COS‐11D‐HWM‐MIC BOOM‐Lmo‐CC |
Terminated with Lemo Connector, (CC) Cocoa |
ACCESSORIES
Included Accessories:
Spare Wire Clips (1 Small, 1 Large) plus the items shown below…
Urethane Windscreen
COS-11D-HWM Head Worn Mic Urethane Windscreen Beige (BE) or Cocoa (CC)
HWM Template box
COS-11D-HWM Box
Optional Accessories
COS‐11D‐HWM Clip Set‐X: Extra Large, Replacement Clip Set (Cable to Frame), 5 pack
COS‐11D‐HWM Clip Set‐L: Large, Replacement Clip Set (Cable to Frame), 10 pack
COS‐11D‐HWM Clip Set‐Sm: Small, Replacement Clip Set (Cable to Frame), 10 pack
HWM Frame: Replacement COS‐11D HWM Steel Frame
Plus the accessories shown below (Sold in packs of 10 unless otherwise noted)…..
WS-11
Windscreen (BE) Beige or (CC) Cocoa. WS-11-BE, WS-11-CC
WSL-11-BK
Large Metal Windscreen Black only
FW-11MT
Foam windscreen, multicolor pack (11 pieces)
FW-11-BK
Foam windscreen, black only (10 pieces)
